Intent grounding120
Image-based modeling
Construct engineering artifacts from visual references and drawings.
EngiWorldWhat Can Frontier Agents Deliver in
Professional Engineering Environments?
1Tsinghua University 2Zhiman Inc. 3Chongqing University 4University of the Chinese Academy of Sciences 5Shandong University 6Beijing University of Posts and Telecommunications 7Fudan University 8Henan Polytechnic University 9Xi'an Jiaotong University 10Peking University 11Zhejiang University
1,301Expert-curated tasks
26Software platforms
6Engineering domains
6Task types
7Evaluated models
Overview
Autonomous agents have made rapid progress in general-purpose computer use, but reliable automation of professional industrial engineering remains out of reach, as engineering workflows demand reasoning over geometric and physical constraints and dependencies preserved across software and design stages.

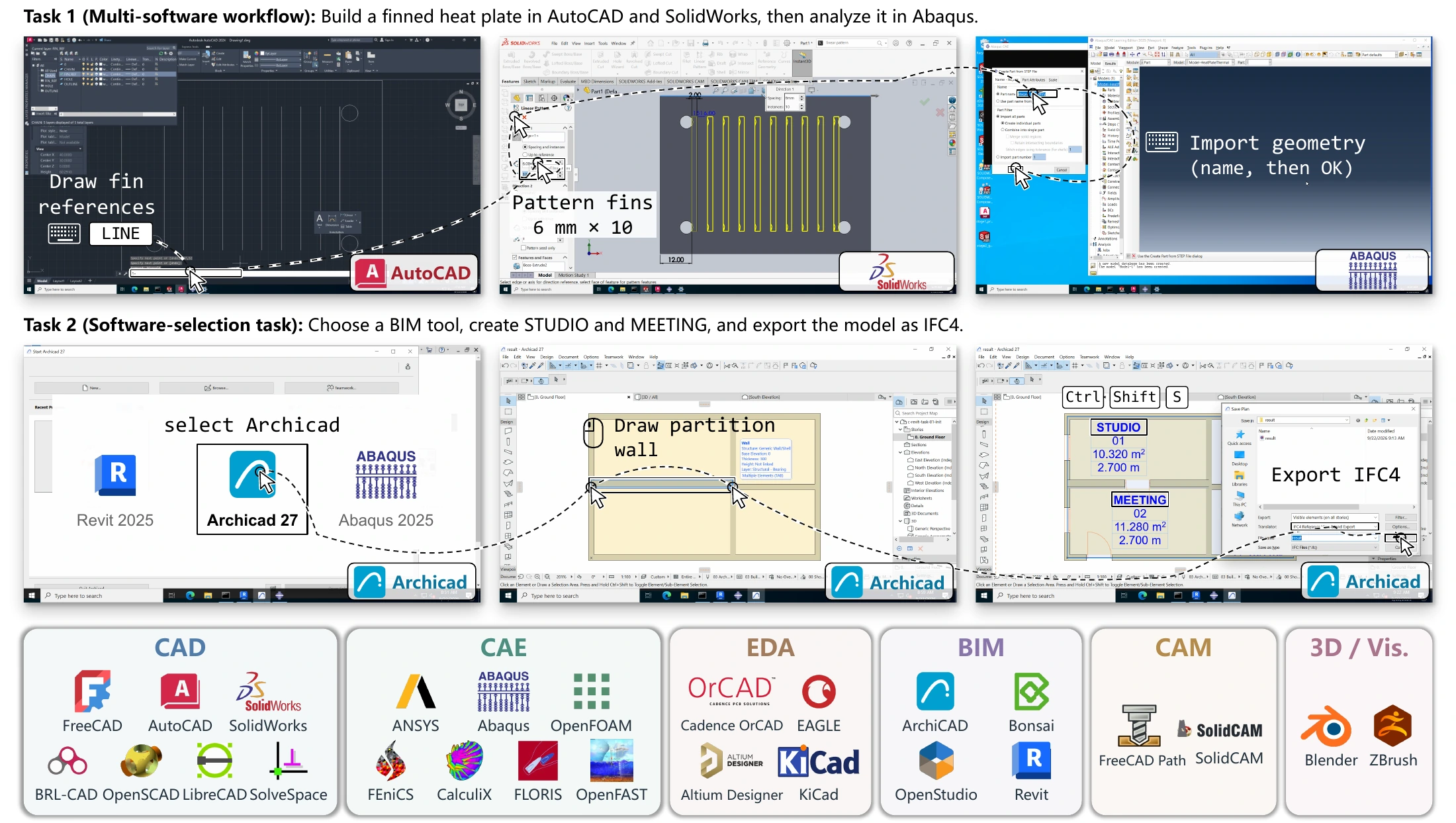

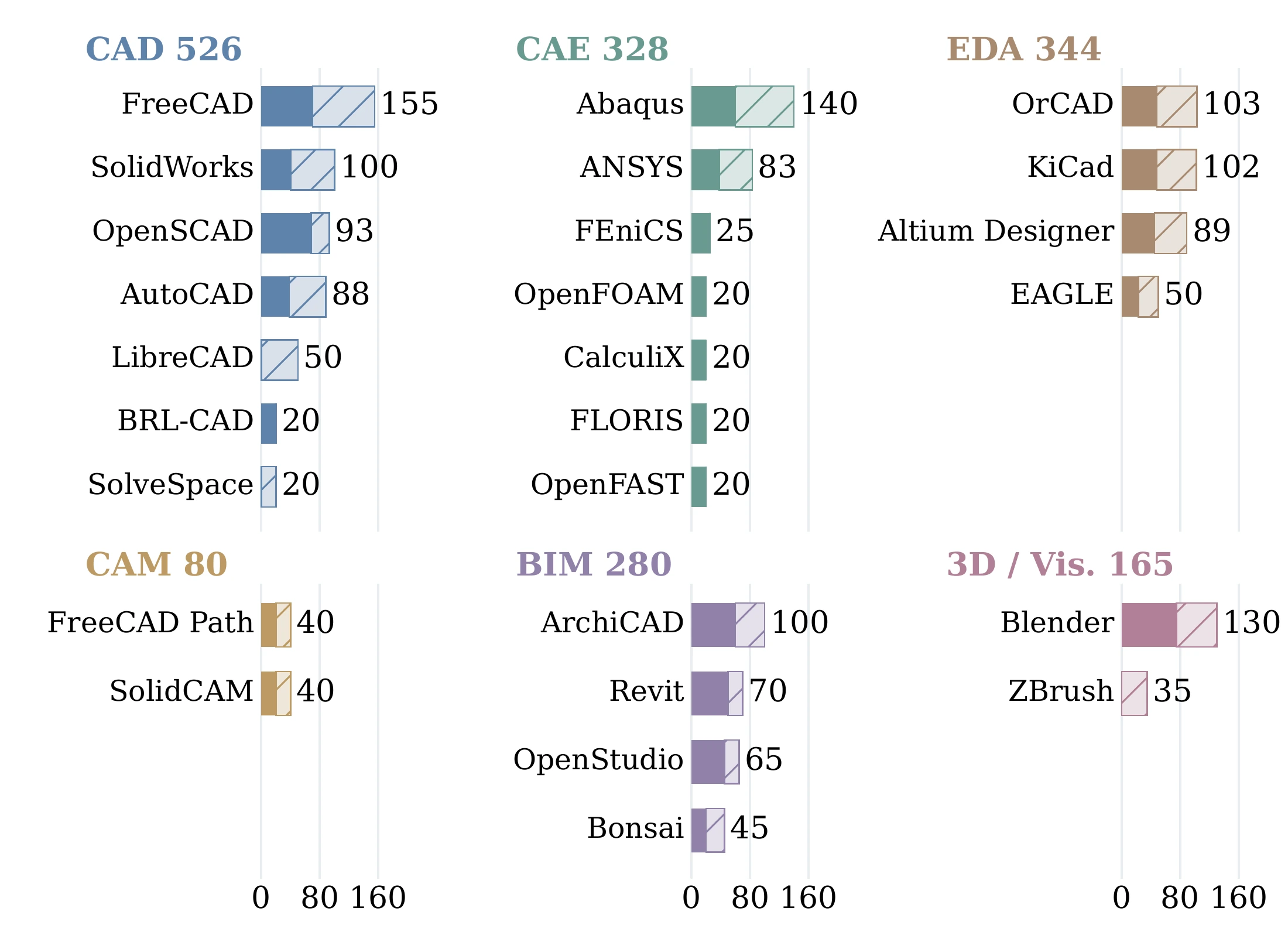

We present EngiWorld, the first benchmark structured around the complete design loop: 1,301 expert-curated tasks spanning 6 engineering domains (CAD, CAE, CAM, BIM, EDA, and 3D visualization) and 26 professional software platforms, with both GUI and CLI interfaces and 6 task types ranging from software-selection to open-ended tasks.
We further introduce an artifact-centric evaluation methodology built on a unified domain-verifier suite, which programmatically checks the geometric validity, physical feasibility, and rule compliance of final and intermediate artifacts, and scores quantitative design tasks continuously by specification attainment rather than binary success. Evaluation of seven frontier models reveals a substantial capability gap: the strongest model achieves an EngiScore of only 44.3, and just 3.6% of multi-software attempts succeed. EngiWorld provides the first rigorous foundation for measuring progress toward agents that operate professional engineering software end to end.
The benchmark

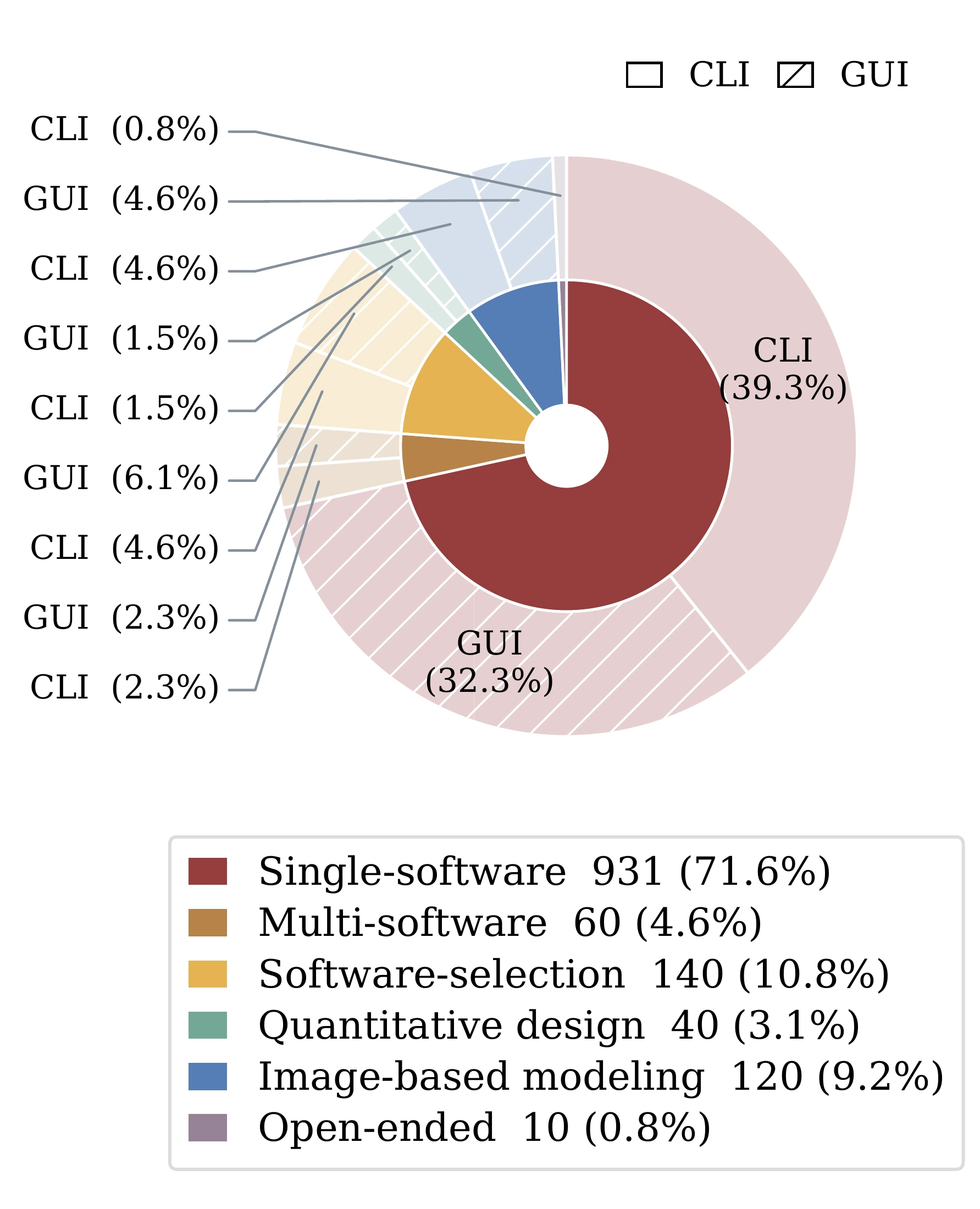

Six task types, spanning the complete engineering design loop.
Tool selection140
Software-selection
Choose suitable applications from a permitted set of engineering tools.
Precise construction931
Single-software
Complete a specified engineering objective within one designated application.
Specification attainment40
Quantitative design
Meet feasibility constraints and optimize a continuous design-quality objective.
Cross-toolchain delivery60
Multi-software
Transfer intermediate artifacts and preserve dependencies across applications.
Environment bootstrapping10
Open-ended
Choose tools and execution strategies without a predefined software workflow.
691 CLI tasks610 GUI tasksWindows + Ubuntu environments

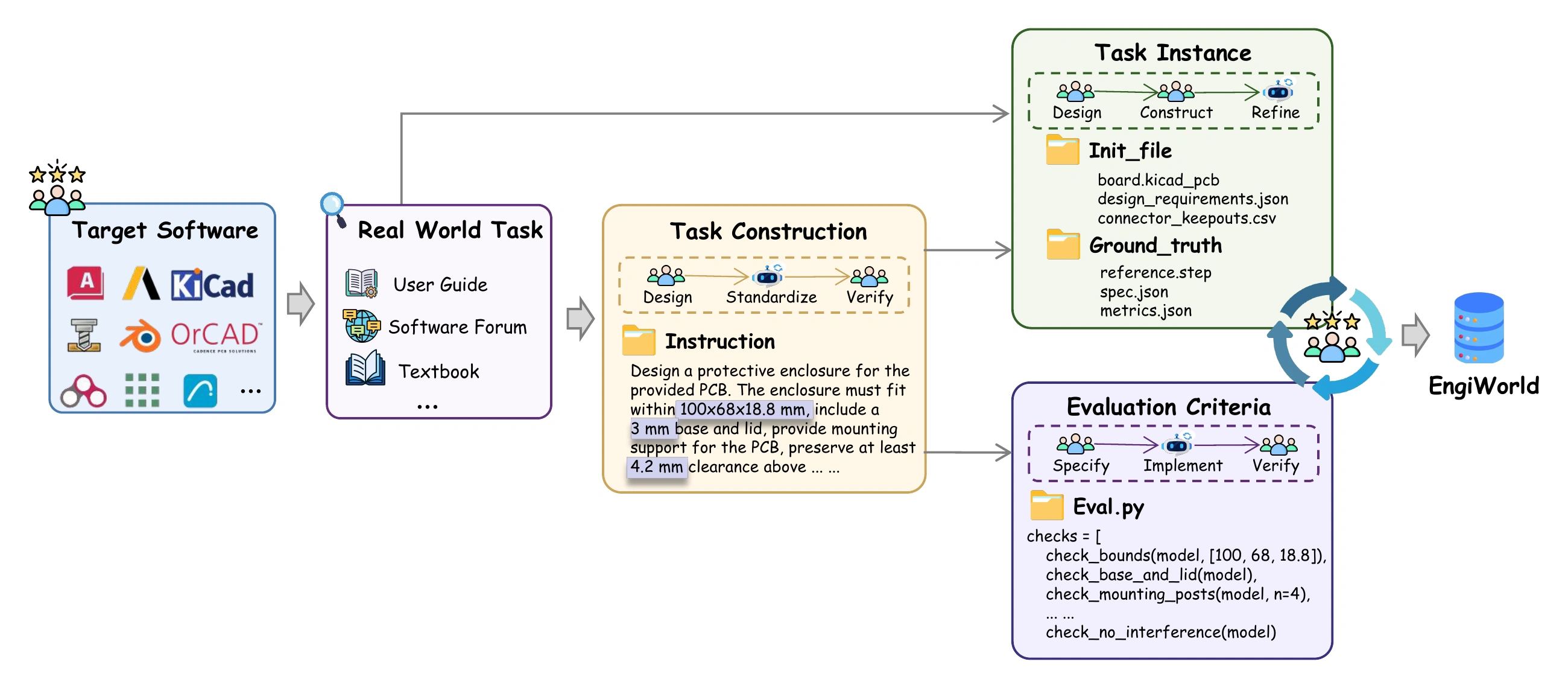

How the dataset is constructed
Experts define representative engineering objectives, initial workspaces, deliverables, and acceptance criteria. AI assists task specification and verifier implementation. The final task packages are executed and reviewed in their designated software environments.

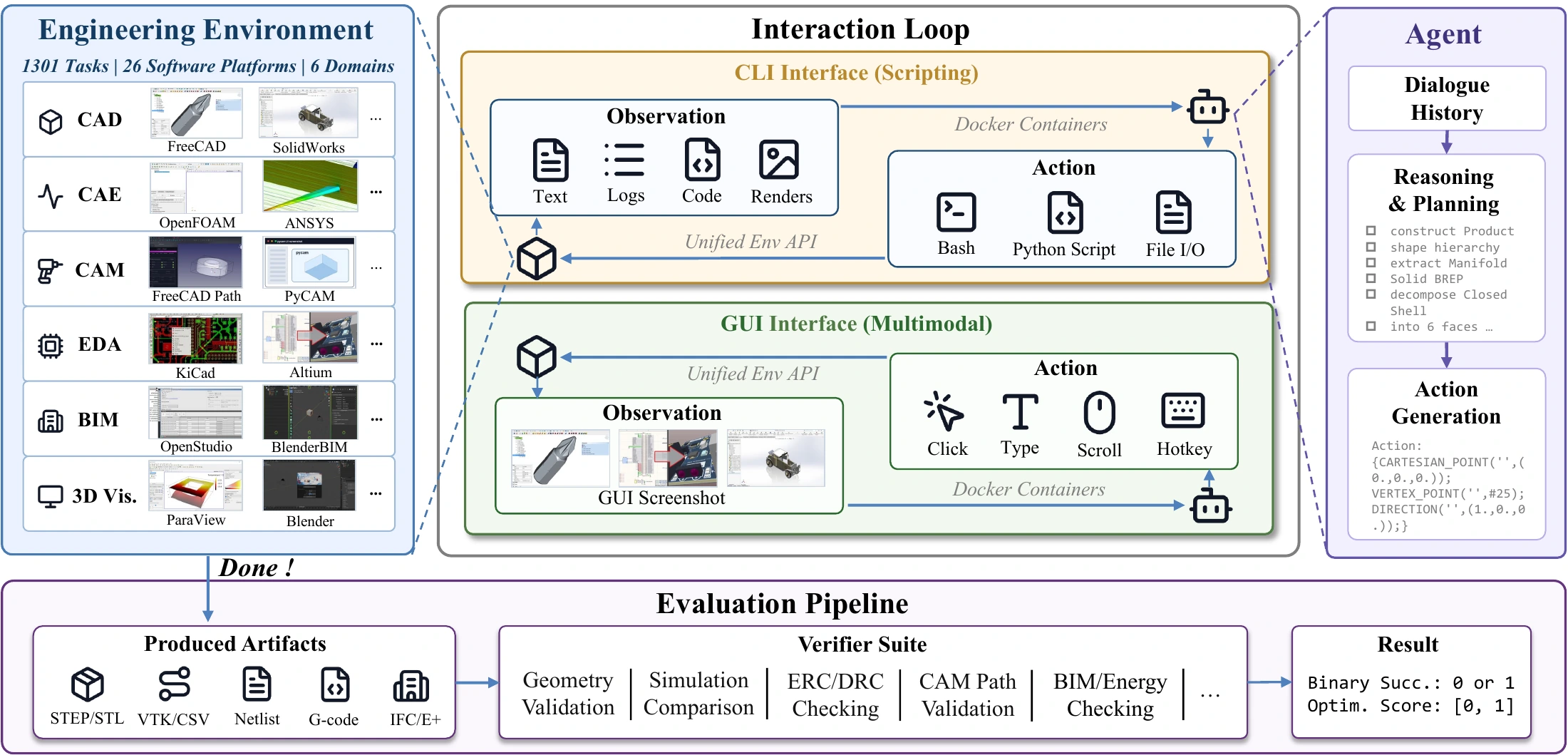

Evaluation
Agents work through GUI or CLI interfaces. Domain-specific verifiers reopen their deliverables and check the engineering properties that matter.
Interact
Start from a clean, task-specific workspace. Use visual observations and mouse or keyboard actions, or terminal commands and scripts.
Deliver
Submit native models, simulation outputs, circuits, building models, or 3D scenes, including intermediate files when the workflow requires them.
Verify
Recompute geometry, topology, physical quantities, rule compliance, and consistency across workflow stages against task-specific criteria.
EngiScore = 100 × mean task score. Binary tasks receive 1 only when every required criterion passes. Quantitative design tasks receive a continuous score between 0 and 1 after passing feasibility checks; infeasible outputs receive 0.
Results
Seven frontier models evaluated on the same stratified subset of 300 tasks: 152 CLI and 148 GUI tasks across 73 software–category strata.
44.3
Highest overall EngiScore
Claude Opus 5 leads the main evaluation.
3.6%
Multi-software success
6 of 168 attempts succeed across all seven models.
128
Tasks with zero scores for every model
Out of the 300 tasks in the main evaluation.
| Model | ||||||
|---|---|---|---|---|---|---|
01 Claude Opus 5 | 44.3 | 47.9 | 40.5 | 70.2 | 2.4 | 19.02 |
02 GPT-5.6 Sol | 38.0 | 47.1 | 28.6 | 54.9 | 1.0 | 9.73 |
03 Qwen3.8 Max | 25.8 | 34.7 | 16.6 | 108.1 | 2.6 | 6.52 |
04 DeepSeek V4.1 Flash | 25.5 | 48.3 | 2.0 | 116.2 | 9.9 | 0.81 |
05 Gemini 3.7 Flash | 25.3 | 36.1 | 14.2 | 110.8 | 0.7 | 2.11 |
06 Kimi K3 | 24.1 | 31.3 | 16.7 | 92.5 | 0.9 | 5.90 |
| 07Qwen3.8 Flash | 16.1 | 30.8 | 1.0 | 120.5 | 1.3 | 0.45 |
EngiScore: higher is better. Steps and API cost: per-task means over all 300 tasks, including unsuccessful runs. Tokens (K): output tokens per decision step, averaged over the 300 tasks and reported in thousands. Lower Steps, Tokens, and Cost are preferred. Click a column heading to sort.
CLI and GUI scores are measured on different task subsets, not a paired comparison of the same tasks. Scores are reported as in the supplied manuscript.
Analysis

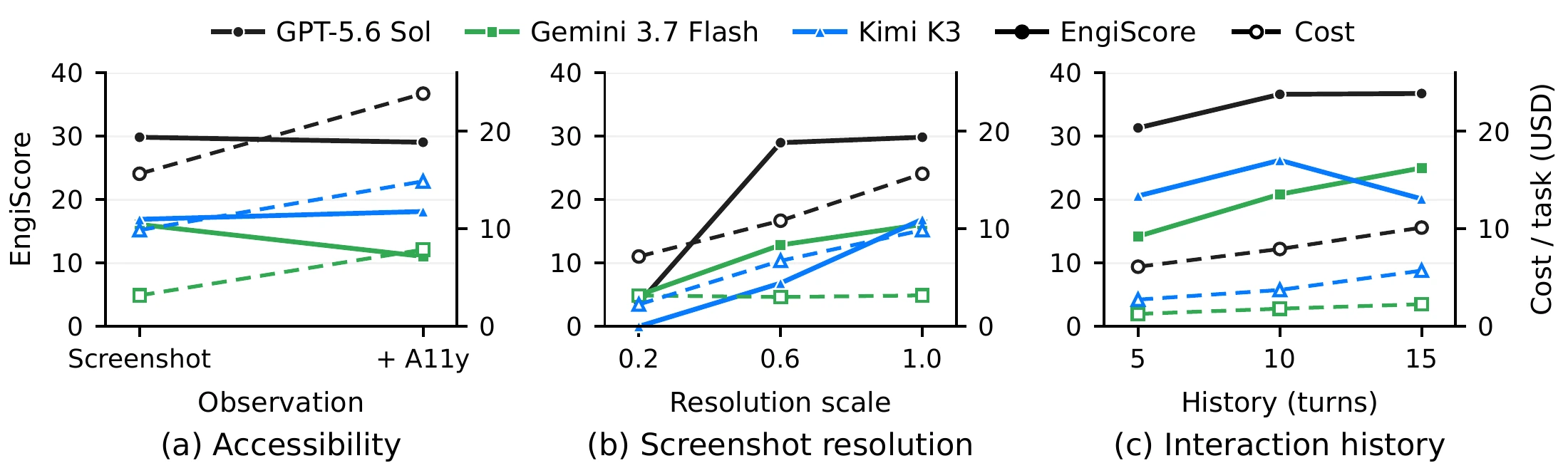

Controlled ablations vary visual inputs, accessibility information, screenshot resolution, and interaction history.
Reference images in the message
For GPT-5.6 Sol, GUI EngiScore rises from 15.0 to 31.7 when the reference drawing is shown directly in the task message. Improvements are not uniform across individual tasks.
Richer observations have tradeoffs
Accessibility trees improve Kimi, change GPT little, and lower Gemini’s score. API cost increases by 50.7–147.9% even though all three models use fewer decision rounds.
History length is model dependent
Gemini benefits from a 15-turn window; GPT largely plateaus after 10 turns. Kimi performs best at 10, with a longer window reducing its score and increasing cost.
Initial-image presentation
| Model | GUI | CLI | ||
|---|---|---|---|---|
| Env. | Message | Env. | Message | |
| GPT-5.6 Sol | 15.0 | 31.7 | 63.3 | 68.3 |
| Gemini 3.7 Flash | 3.3 | 10.0 | 38.3 | 40.0 |
| Kimi K3 | 6.7 | 10.0 | 40.0 | 36.7 |
Env.: reference drawing available in the environment. Message: reference drawing included in the initial message.
Runtime image access in CLI
| Model | With initial image | Without initial image | ||
|---|---|---|---|---|
| Off | On | Off | On | |
| GPT-5.6 Sol | 66.7 | 68.3 | 48.1 | 41.5 |
| Gemini 3.7 Flash | 36.7 | 40.0 | 33.3 | 36.6 |
| Kimi K3 | 41.7 | 36.7 | 31.5 | 26.5 |
Off / On: whether the agent can inspect images through readimg during execution.

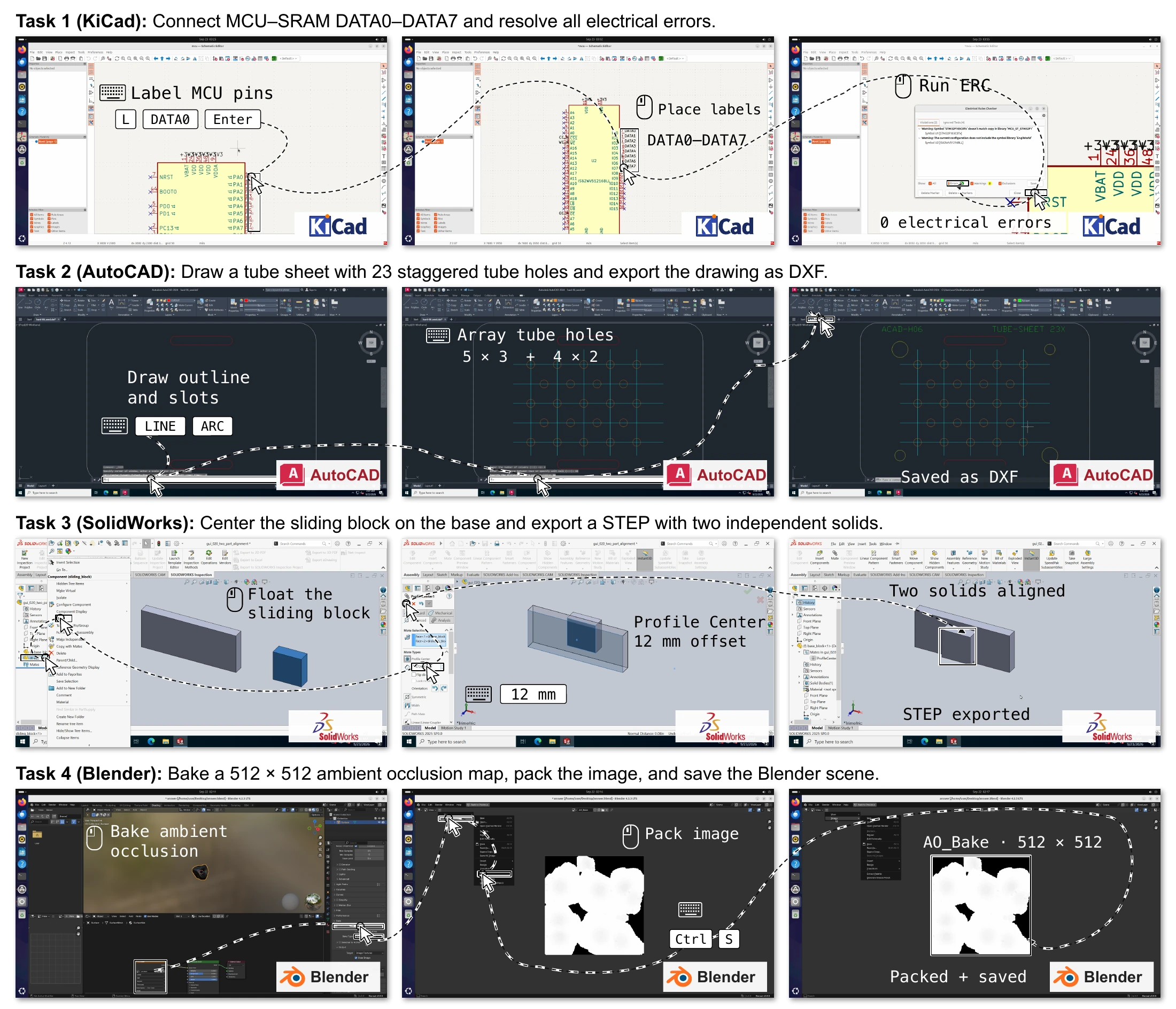

Case studies
Four single-software GUI workflows from the paper. Each passes its task-specific artifact checks and receives a score of 1.0.
Connect a data bus and preserve the circuit
Eight distinct data nets establish the required MCU–SRAM mapping. The saved schematic retains the existing circuitry and passes with zero electrical-rule errors.
Build a precise staggered hole pattern
Two rectangular arrays create 23 tube holes. The exported DXF preserves the required coordinates, radii, entity types, and layer assignments.
Align parts while preserving geometry
The sliding block is positioned against the base. The exported STEP retains both independent solids and their original dimensions.
Deliver a scene with a packed AO bake
A 512 × 512 ambient-occlusion image is baked and packed into the saved native scene, preserving the computed pixels in the deliverable.

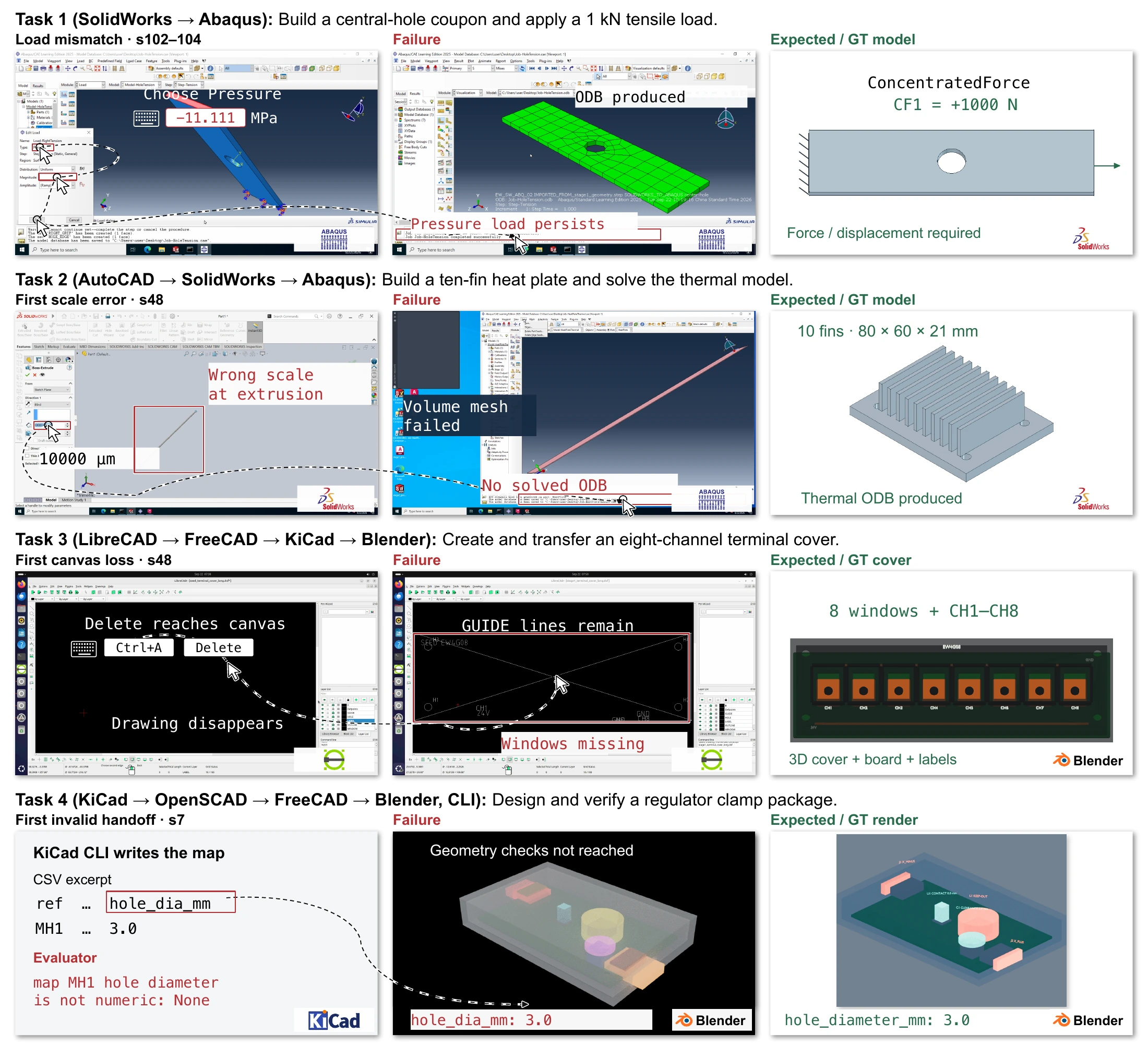

Where multi-software workflows break down
The recorded failures span import-scale errors, incorrect action targeting, and mismatches between submitted representations and verifier expectations. In the load case, a pressure representation does not satisfy the verifier’s force/displacement check; in the CSV case, an unrecognized diameter-field name stops evaluation before downstream geometry checks.
All four illustrated runs receive zero credit. The examples distinguish execution errors from representation and schema mismatches; they do not establish that every zero-score artifact is physically invalid.
Citation
BibTeX
@misc{engiworld2026,
title = {EngiWorld: What Can Frontier Agents Deliver in Professional Engineering Environments?},
author = {Hongcheng Gao and Hailong Qu and Yu Lei and Henghui Sun and Haoyang Li and Yipeng Wei and Naihao Xue and Xiaohan Yu and Zhuo Tao and Yihe Zang and Yajiao Wang and Jingyi Tang and Yi Li and Jingjing Zhou and Jie Luo and Bohan Zeng and Chengyu Shen and Hao Jiang and Chong Chen and Bowen Qu and Olive Huang and Zeqiang Wang},
year = {2026},
eprint = {2609.37686},
archivePrefix = {arXiv},
primaryClass = {cs.AI},
url = {https://arxiv.org/abs/2609.37686}
}
